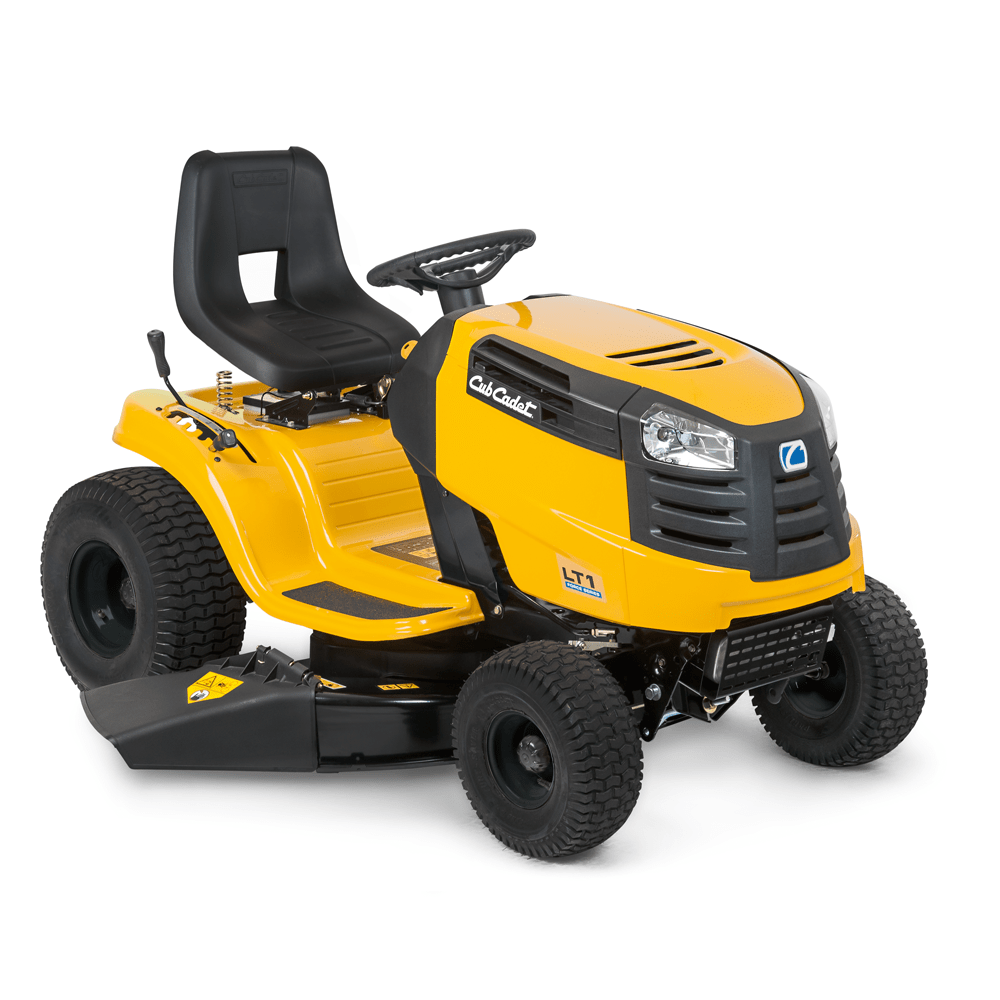

Cub Cadet LT1 NS96 Force Series 96cm 38" Lawn Tractor
Cub Cadet LT1 NS96 Force Series 96cm 38" Lawn Tractor
✔ High-quality materials
✔ 30-day satisfaction guarantee
✔ Quick processing times
Couldn't load pickup availability
Cub Cadet LT1 NS96 Force Series 96cm 38" Lawn Tractor
Get it between - and -.
The Cub Cadet LT1 NS96 is a side discharge garden tractor with a 96cm/38", twin bladed cutting deck and 5 cutting height positions ranging from 30mm – 95mm. Featuring a Cub Cadet engine, six speed transmatic transmission with smooth `change on the move` drive and a tight turning circle of 46cm/18", this tractor is perfect for use in confined areas.
Easy and efficient operation is assured with a step through chassis design, allowing safe & easy mounting and dismounting.
Features
The Cub Cadet LT1 range of lawn tractors are strong, versatile and comfortable; delivering perfect mowing performance, exceptional cutting and bagging with incredibly responsive handling. Get perfect cutting results even on undulating or difficult terrain.
- Cutting width : 96cm / (38'')
- Transmission : Transmatic
- Rated power kW/min -1 : 8.3 / 2.8
- Mowing area in m 2 /h: 4.000
- Grass bag capacity (l) : (Optional - 200)
Specifications
| Engine | Cub Cadet OHV |
|---|---|
| Engine displacement (cm3) | 439 |
| Rated power (kW/min-1) | 8.3 / 2.8 |
| Cylinders | Single |
| Fuel tank capacity(l) | 3.8 |
| Transmission | Transmatic |
| Air speed (max) | 6 (f/r), shift-on-the-go |
| Control | Foot pedal control |
| Cruise Control | No |
| Mowing area (m2/h) | 4.000 |
| Cutting width | 96cm / (38'') |
| Cutting height | 30-95 mm |
| Number of blades | 2 |
| Deck Engagement | Manual lever control |
| Deck height positions | 5 positions |
| Deck Wheels | No |
|---|---|
| Wash nozzle / mulching plug | No / Optional (OEM-190A116) |
| Grass bag capacity (l) | 2Optional - 200 / (OEM-190-180A) |
| Bag lever / hardtop | – / – |
| Bag full indicator / Grass Deflector | – / Standard |
| Front axle | Steel |
| Front bumper | Not fitted (OEM-196B603) |
| Turning radius (cm) | 46cm (18'') |
| Wheels (front/rear) (Zoll) | 15 x 6 / 20 x 8 |
| Wheel bearings | Sleeve bearings |
| Frame | Easy entry frame |
| Headlights | Standard |
| Seat type |
High back |
| Seat adjustment | Tool-less |
| Steering wheel | Standard |
|---|---|
| Tool box / Cub holder | – / – |
| 12V Plug | – |
| Mow in reverse | – |
| Battery charger | (196-967-678) |
| Noise values (dB) | 88 / 98 / 100 |
| Vibration value body (K-factor) (m/s2) | 1 / 0.5 |
| Vibration value hand-arm (K-factor) (m/s2) | 5 / 1.5 |
| Dimensions (L / W / H) (cm) | 170 / 107 / 100 |
| Weight net (kg) | 150 |
