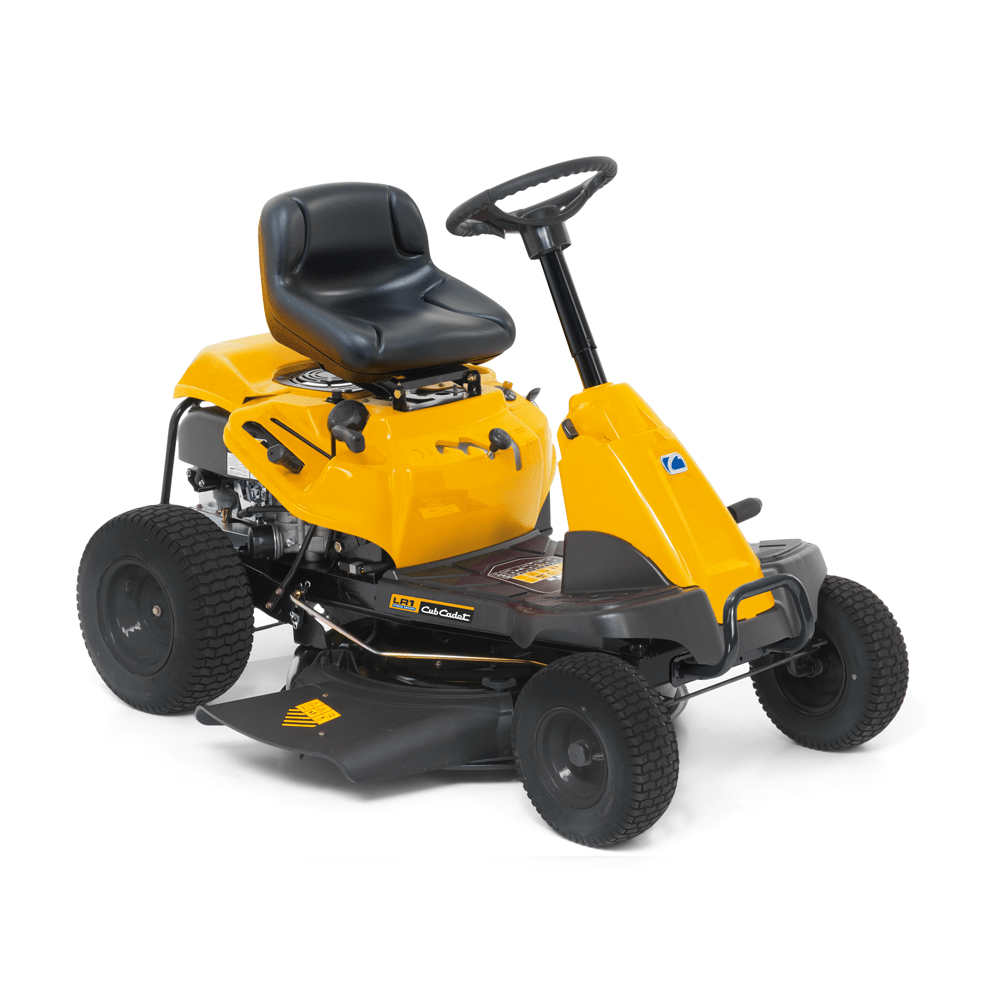

Cub Cadet LR1 MS76 Force Series 76cm (30") Mini-Rider
Cub Cadet LR1 MS76 Force Series 76cm (30") Mini-Rider
✔ High-quality materials
✔ 30-day satisfaction guarantee
✔ Quick processing times
Couldn't load pickup availability
Cub Cadet LR1 MS76 Force Series 76cm (30") Mini-Rider
Get it between - and -.
The Cub Cadet LR1 MS76 is built for smaller properties where a compact ride-on makes more sense than a full-size lawn tractor. With its 76 cm cutting width and side-discharge layout, it is a good fit for owners who want the convenience of sitting down to mow but still need a machine that is easy to store.
This mini-rider should suit straightforward domestic mowing on modest areas rather than heavy-duty use across large grounds. Its transmatic transmission keeps operation simple, and the compact design helps it work in spaces where a larger ride-on would feel awkward.
Features
- 76 cm (30 in) cutting width for compact gardens and narrower access points.
- Side-discharge deck suited to routine mowing where collection is not essential.
- Transmatic transmission with 6 forward and 6 reverse speeds.
- Electric start for easier day-to-day use.
- Rated power of 7.9 kW at 2,900 rpm.
- Space-saving mini-rider design for simpler storage.
- Optional 115-litre grass collector available.
- Mowing area capacity up to 3,000 m2 per hour.
Specifications
Engine
| Engine | Cub Cadet OHV |
| Engine displacement (cm3) | 382 |
| Rated power (kW/min-1) | 7.9 / 2,900 |
| Cylinders | Single |
| Fuel tank capacity(l) | 4.9 |
| Lubrication | Fully pressurised automotive-style oil pump with spin-on oil filter |
Drive system
| Transmission | Transmatic |
| Air speed (max) | 6 (f/r), shift-on-the-go |
| Control | Foot pedal control with lever for manual pre-selection |
Cutting system
| Mowing area (m2/h) | 3,000 |
| Cutting width | 76cm (30'') |
| Cutting height | 38–95 mm |
| Cutting options | 3-in-1 option |
| Number of blades | 1 |
| Deck Engagement | Manual lever control |
| Deck height positions | 5 positions |
| Wash nozzle / mulching plug | Standard/Optional |
Discharge system
| Grass bag capacity (l) / accessory no. | Optional 115 litres/(19A30014OEM) |
| Bag lever / hardtop | – / – |
| Bag full indicator / Grass Deflector | – / Standard |
| Grass bag capacity (l) | Optional 115 litres |
Frame
| Front axle | Steel |
| Front bumper | – |
| Turning radius (cm) | 46cm /18 |
| Wheels (front/rear) (Zoll) | 13 x 5 / 16 x 6.5 |
| Wheel bearings | Sleeve bearings |
| Frame | Easy entry frame |
Electric
| Battery | 12V wet battery 115 CCA |
| Headlights | – |
Comfort
| Seat type | Comfort Seat |
| Seat adjustment | Tool-less |
| Steering wheel | Standard |
| Mow in reverse | Standard |
| Battery charger | (196-967-678) |
Dimensions
| Noise values (dB) | 88 / 98 / 100 |
| Vibration value body (K-factor) (m/s2) | 1.0 / 0.5 |
| Vibration value hand-arm (K-factor) (m/s2) | 5.0 / 1.5 |
| Dimensions (L / W / H) (cm) | 157 / 85 / 112 |
| Weight net (kg) | 126 |
